Portes NON ET - 7420

DOUBLE PORTE NON-ET A 4 ENTREES

Fabricant: TEXAS INTRUMENTS / NATIONAL SEMICONDUCTOR
Appellation fabricant:
- TEXAS INTRUMENTS: SN 7420 N
- NATIONAL SEMICONDUCTOR: DM 7420 N
Composant neuf

4-Input NAND-Function Logic Gate
ttl,transistors,transistor devices
Circuits Per Package=2
t(PLH) Maximum (S)=29 n
Features=Totem-Pole
Noise Rej. Max.=0.4
P(D) Max.(W) Power Dissipation=55 m
Vsup Nom.(V) Supply Voltage=5.0
Status=Discontinued

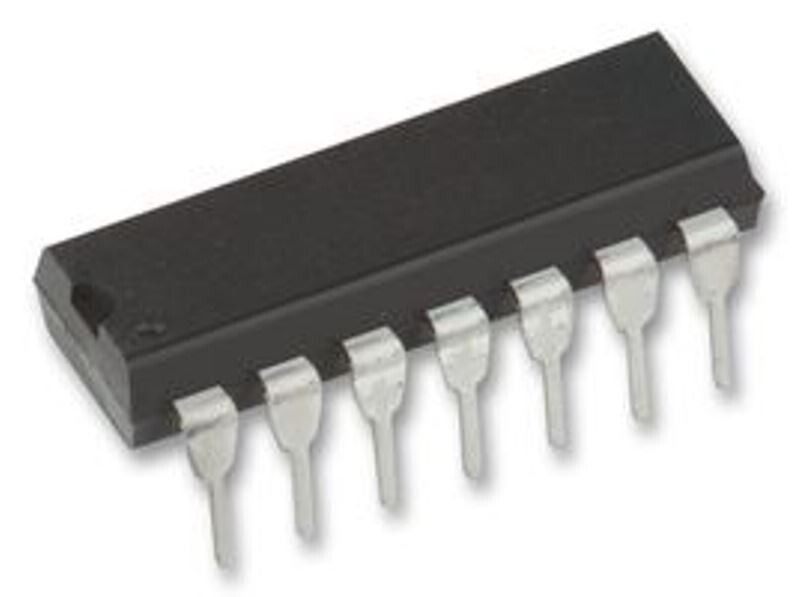

Package=TO-116 (DIP16)
Pins=14
Technology=TTL
