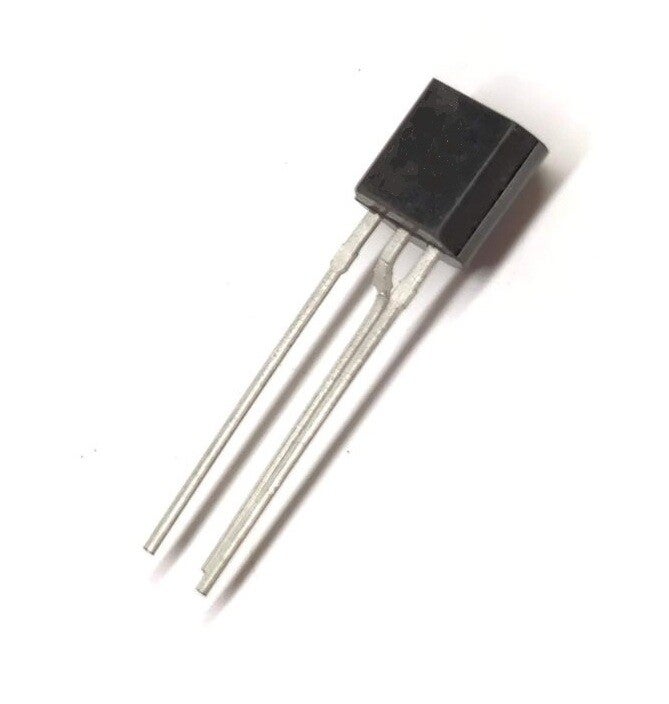

Transistor PNP Si BC560C

TRANSISTOR PNP TO-92-f Faible bruit

Fabricant: PHILIPS
Appellation fabricant: BC 560 C

Type Designator: BC560C
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.5 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 4.5 pF
Forward Current Transfer Ratio (hFE), MIN: 420
Noise Figure, dB: -
Package: TO92
